PRODUCT DETAILS
Brand
| Apacer |
Model
| Apacer AS2280P4 |
Type | Internal SSD |
Part No | AP512GAS2280P4-1 |
Storage & Interface
|
|
Storage | 512GB |
Interface(s) | PCIe Gen3 x4 |
Flash Type | 3D TLC NAND flash |
Performance
|
|
Read Speed (Max.) | 3000MB/s |
Write Speed (Max.) | 2000MB/s |
Main Features
|
|
Shock Resistance | 1500G/0.5msec |
TRIM Support | Yes |
S.M.A.R.T Support | Yes |
MTBF | 1,500,000 hours |
Technical Information
|
|
Power Consumption | 4000 mW (Active mode), 70mW (Power State) |
Physical Description
|
|
Form Factor (Inch) | M.2 2280 |
Dimension | 80 x 22 x 2.38 mm |
Weight | 6.80 gm |
Warranty
|
|
Warranty | 3 year |
Additional Info
|
|
Others
| Vibration: 7 - 800Hz, 3.08Grms, Operating
Temperature: 0 degree C - 70 degree C, Storage: -40 degree C - 85 degree
C, Supply Voltage: 3.3 V +- 5%, Connector Type: 75-pin M.2 module
pinout, Frequency: 20Hz - 80Hz, Certificate: KCC, CE, FCC, VCCI, RCM,
BSMI |
Specialty | The AS2280P4 SSD has built-in protection
technology to ensure data integrity and stability, It is definitely the
top choice for ultra-thin Laptops, e-sports consoles, and mini-PCs. |

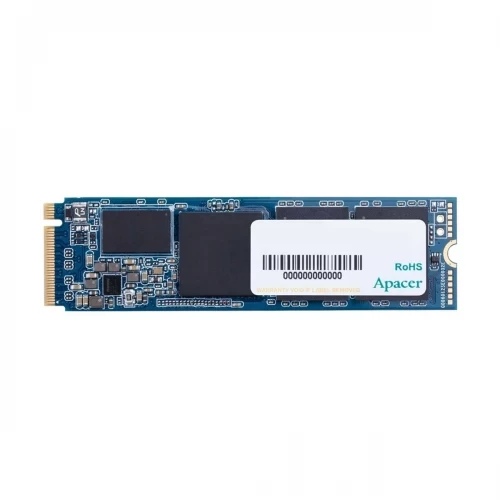

Apacer AS2280P4 512GB M.2 2280 PCIe SSD
Brand - Apacer, Model - Apacer AS2280P4, Storage (GB/TB) - 512GB, Type -
Internal SSD, Form Factor - M.2 2280, Interface - PCIe Gen3 x4, Flash
Type - 3D TLC NAND flash, Read Speed (Max.) - 3000 MB/s, Write Speed
(Max.) - 2000 MB/s, Shock Resistance - 1500G/0.5msec, TRIM Support -
Yes, S.M.A.R.T Support - Yes, MTBF - 1,500,000 hours, Power Consumption -
4000 mW (Active mode), 70mW (Power State), Dimension - 80 x 22 x 2.38
mm, Weight - 6.80 gm, Others - Vibration: 7 - 800Hz, 3.08Grms, Operating
Temperature: 0 degree C - 70 degree C, Storage: -40 degree C - 85
degree C, Supply Voltage: 3.3 V +- 5%, Connector Type: 75-pin M.2 module
pinout, Frequency: 20Hz - 80Hz, Certificate: KCC, CE, FCC, VCCI, RCM,
BSMI, Specialty - The AS2280P4 SSD has built-in protection technology to
ensure data integrity and stability, It is definitely the top choice
for ultra-thin Laptops, e-sports consoles, and mini-PCs., Part No -
AP512GAS2280P4-1, Warranty - 3 Year, Country of Origin - Taiwan, Made
in/ Assemble - Taiwan.
