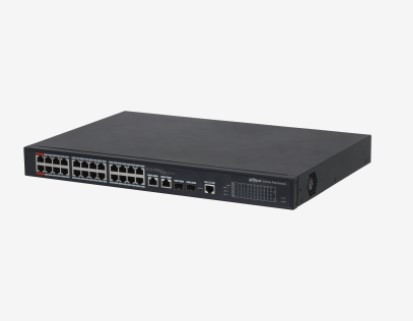

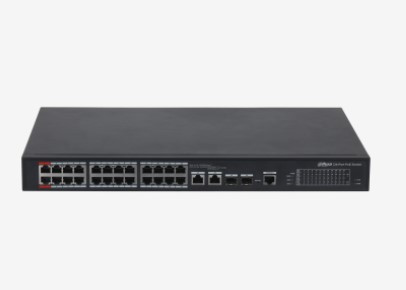

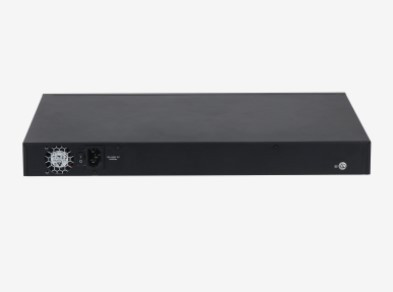

Brand | Dahua |
Type | Desktop PoE Switch |
Model | PFS4226-24ET-240 |
Performance | |
Layer | 2 |
Managed | Yes |
Switching Capacity | 8.8 Gbps |
Packet Forwarding Rate | 6.55 Mpps |
Packet Buffer Memory | 2.75 Mbit |
MAC Table Size | 4K |
Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;IEEE 802.3z |
Hardware Feature | |
Standard Power Supply | Yes |
PoE | Yes |
Ethernet Port | 24 |
Optical Port | 2 |
Ethernet Port Rate | 100 Mbps |
Optical Port Rate | 1 Gbps |
Number of Bussiness Card Slots | Port 1-24: 24 × RJ-45 10 M/100 M (PoE), Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink), Port 25-26: 2 × SFP 1000 M (uplink) (combo) |
Debugging | Console × 1 |
Power Supply | 100V–240V AC |
Operating Temperature | –10 °C to +55 ° (14 °F to 131 °F) |
Operating Humidity | 10% RH–90% RH |
Power Consumption | |
Idling | 10W |
Full load | 240W |
PoE | |
PoE Standard | IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt |
PoE Budget | Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 240W |
PoE Management | Power consumption management, Power on and power off, Power down for overload |
Legacy support | Long Distance PoE Transmission |
power supply | 250 m long-distance |
Function | |
Spanning Tree Protocol | IEEE 802.1d (STP); 802.1w (RSTP) |
VLAN | IEEE802.1q Standard VLAN |
Flow Control | Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex) |
Link Aggregation | Static; LACP |
Port Mirroring | One-to-one; multiple-to-one |
Multicast | GMP snooping based on port |
DHCP | DHCP client |
Security | Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication |
QoS | High and low priority WRR802.1P, DSCP Priority based on protocol |
General | |
ESD | Air discharge: 8kV, Contact discharge: 6kV |
Thunder-proof | Common mode: 4kV, Differential mode: 2kV |
Dimensions | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H) |
Packaging Dimensions | |
Packing box | 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H) |
Protective box | 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H) |
Warranty | 1 Year |
Feature:
-The parameters and datasheets below can only be applied to to V2.0 & V3.0.
- Intelligent PoE.
- Red port supports 90W IEEE802.3bt.
- Web management with friendly interface and easy operation.
-250 m long distance PoE transmission.
- PoE watchdog.
-Plug and play.
