| Brand | Hikvision |
| Model | DS-7604NI-Q1 |
| Type | 4K NVR |
| Video Compression/Format | H.265/ H.265+/ H.264/ H.264+/ MPEG4 |
Video Output (VGA) | 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
Video Output (HDMI) | 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Max. Video Recording Res. | 3840 x 2160 |
| IP Video Input | 4-channel |
| Audio Input Channel (RCA) | 1-channel, RCA (2.0 Vp-p, 1K omrga) |
| Audio Output Channel | 1-channel, RCA (Linear, 1K omega) |
| Two way Audio | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Live View / Playback Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 6TB capacity for each disk |
| Max. Storage Support | 6TB |
| Network Interface (RJ45) | 1, RJ-45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Port | 2 x USB2.0 |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Chassis | 1U chassis |
| Power Supply | 12VDC |
| Dimensions | 315 x 240 x 48mm |
| Weight (Kg) | <-1Kg |
| Warranty | 1 year |

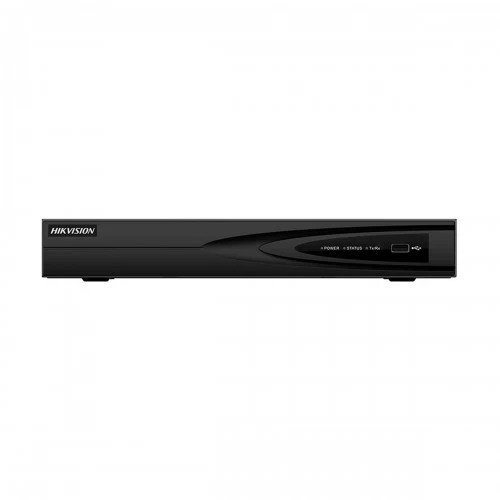

- 4-ch 1U 4K NVR.
- Up to 4 channel IP cameras can be connected.
- Supports decoding H.265+/H.265/H.264+/H.264 video formats.
- Up to 4K high-definition live view, storage and playback.
- Up to 4-ch @ 1080p decoding capacity.
- Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected.
- Simultaneous HDMI and VGA output of the same video stream.
- 1 HDD for continuous video recording.
