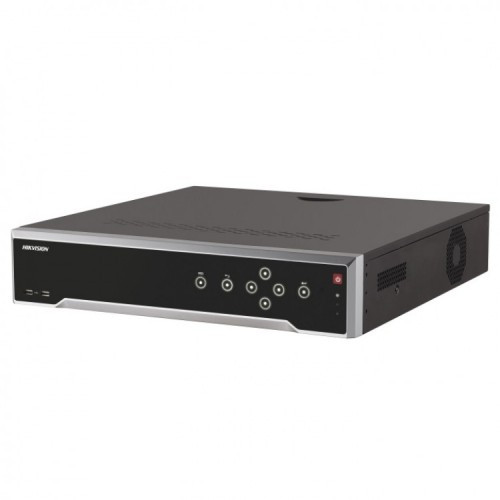

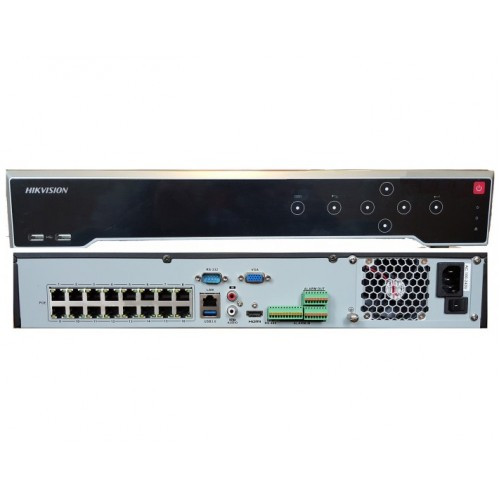

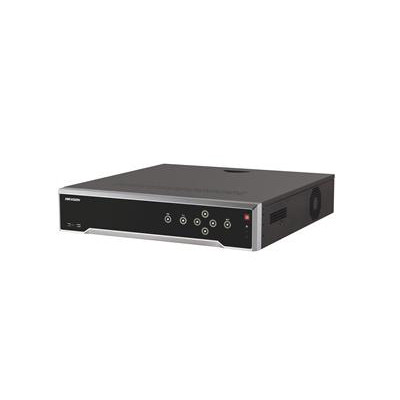

Brand | Hikvision |
Model | DS-7716NI-K4 |
IP video input | 16-ch |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Resolution | 4K (3840 x 2160) resolution |
HDMI output resolution | K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
VGA output resolution | 1920 x 1080/60Hz, 1280 x 1024/60Hz , 1280 x 720/60Hz, 1024 x 768/60Hz |
Record Rate | Up to 8 Megapixels resolution recording |
Alarm in/out | 16/4 |
Sync Playback | 16-ch |
Search Mode | Yes |
Playback Function | Yes |
Backup Mode | Yes |
Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
USB interfaceFront panel | 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
Serial interface | 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional) |
Ethernet Port | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
Network Function | Third-party network cameras supported 16/32-ch network cameras can be connected with 160M/256M incoming |
Incoming bandwidth | 160 Mbps |
Outgoing bandwidth | 160 Mbps |
Remote connection | 128 |
SATA | 4 SATA interfaces for 4HDDs |
Capacity | Up to 6TB capacity for each HDD |
HDD Mode | 4 SATA interfaces |
Auxiliary Interface | USB |
Front panel | 2 x USB 2.0; |
Rear panel | 1 x USB 3.0 |
Power Supply | 100 to 240 VAC |
Consumption(without hard disk and POE) | ≤20 W |
Dimensions | 445 x 390 x70 mm ( 17.5"x 15.3" x 2.8") |
Weight (without hard disk) | ≤ 5 kg (11 lb) |
- Third-party network cameras supported.
- Up to 8 Megapixels resolution recording.
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution.
- 16/32-ch network cameras can be connected with.
- 160M/256M incoming bandwidth.
- Up to 4 SATA interfaces.
- Support dual-os to ensure high reliablility of system running.
- Support various VCA detection alarm and VCA search.
- Support H.265/H.264/MPEG4 video formats.
