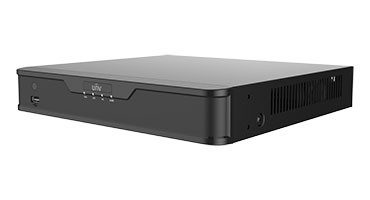

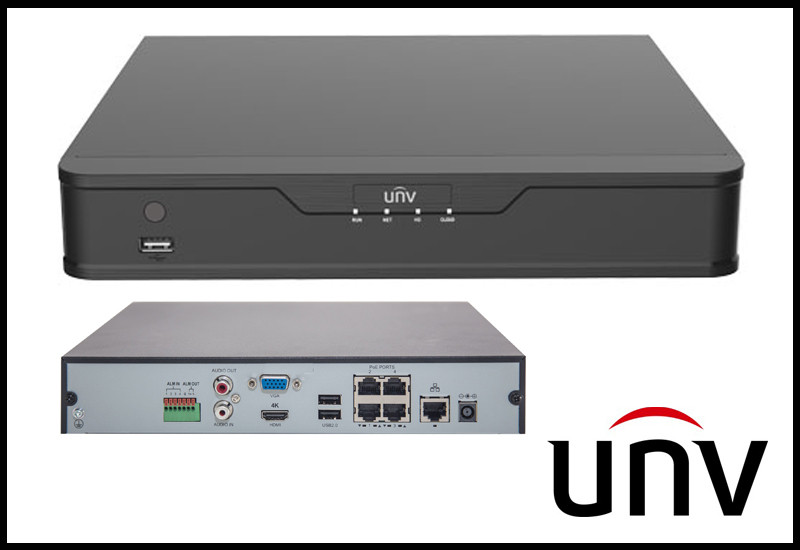

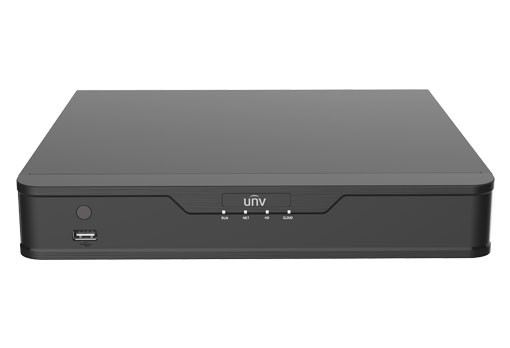

UNV 4CH Network Video Recorder (NVR201-04U)

Product Serial : 1474

(0 Reviews)

Sold by:
Inhouse product

Price:

~~/PC~~

Discount Price:

/PC

Top Selling Products

Description Reviews

Brand	Uniview
Type	DVR
Model	NVR201-04U
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration	Up to 6 IP Channels (8Mpx), replacing all the BNC channels
Video outputs	1 HDMI Full HD, 1 VGA
Audio inputs	4 RCA channels
Audio outputs	1 Channel RCA
Bidirectional audio	Reusing the audio input/output
Video / audio compression	H.264 \| G.711u
Display resolution	1920x1080, 1280x1024, 1280x720, 1024x768
Recording resolution	5Mpx, 4Mpx, 3Mpx, 1920x1080(1080p), 1280x720(720p)
Main Stream coding	5Mpx (1~10 FPS) / 4Mpx (1~12 FPS) / 3Mpx (1~16 FPS) / 1080p / 720p / VGA / WD1 / 4CIF / CIF (1~25FPS)
Extra Stream coding	WD1/D1 (1~16 FPS), CIF/QCIF (1~25 FPS)
Recording method	Manual, programmed, motion detection
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory	1 HDD SATA 3.5" of up to 8TB (not included)
Communication	2 x USB (Mouse and backup) / RJ45 10M/100M (Ethernet)
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power	DC 12V / 5W
Dimensions / Weight	44 (H) x 260 (W) x 240 (D) mm / 1,12 Kg
Easy range	4 CH video HDTVI/HDCVI/AHD/CVBS / 2 IP / 4 CH audio H.264
Resolution per channel	5Mpx (10FPS) or 4Mpx (12FPS) or 3Mpx (16FPS) or 1080p (25FPS)PTZ Control(RS485/Coaxial)
Recorder	5n1
Easy range	4 CH HDTVI / HDCVI / AHD / CVBS / 2 IP
Maximum resolution	5 Mpx
Supports	1 hard disk
Warranty	1 Year
