Brand | Wacom |

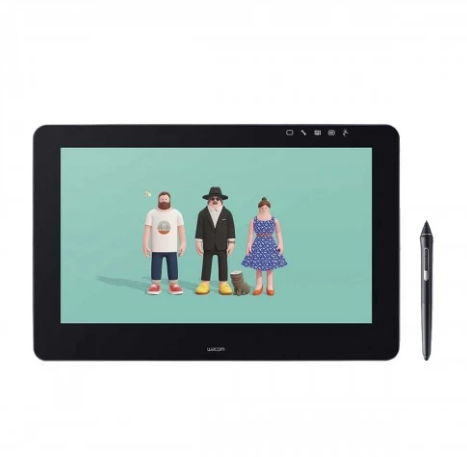

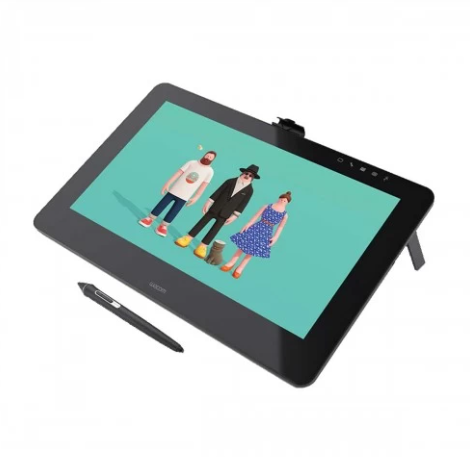

Model | Wacom Cintiq Pro DTH-1620/K2-CX |
Product Type | Creative Pen Display Graphics Tablet |
Part No | DTH-1620/K2-CX |
Display Details | |
Display Size (Inch) | 15.6 |
Display Technology | IPS UHD high brightness panel |
Display Aspect Ratio | 16:9 |
Display Viewing Angel | 176 degree (88 degree /88 degree) H, (88 degree /88 degree) V |
Display Contrast Ratio | 1000:1 |
Display Brightness | 250 cd/m2 |
Display Response Time | 25ms |
Active Area | 345 x 194mm |
Multi-Touch | Yes |
Technical Information | |
Reset Button | Yes |
Express/Shortcut Key | 17 customizable, application-specific on optional ExpressKey Remote |
Touch Ring | Yes - on optional ExpressKey Remote |
Ports & Connectivity | |
Connectivity Mode | USB |
Pan Information | |
Nibs | 10 (6 standard, 4 felt) |
Pen Model | Wacom Pen 4K (LP-1100K) |
Pen Technology | Patented electromagnetic resonance method |
Pen Type | Wacom Pro Pen 2 |
Pen Resolution | 5080 lpi |
Pen Pressure Level | 8192 |
Tilt Range | 60 Degrees |
Tilt Recognition | +- 60 levels |
Pen Switch | Tip switch, 2 side switches, eraser |
Pen Grip | Latex-free silicone rubber |
Desktop Pen Stand | Yes |
Power | |
Power Consumption | 33W |
Software | |
System Requirement/Compatibility | Windows 7 or later, Mac: OS X 10.11 or later |
Physical Description | |
Body Color | Black |
Dimensions | 410 x 265 x 17.5mm |
Weight (gm) | 1.5 kg |
Ports Included | USB |
Software Included | Yes |
Cable Included | Yes |
Additional Info | |
Feature | Three fully customizable pen buttons let you tumble objects, pan, zoom, model, sculpt or modify creative tools in 3D and 2D applications, Work is made to be seen. With stunning Up to 4K resolution (3840x2160) and superb color accuracy, you wont be able to take eyes off it, The 15.6-inch screen gives the broad canvas need to add those little flourishes; while the anti-glare, etched-glass surface means can create in comfort with the familiar feel of pen on paper - until you happy with the results. With plenty of space for work and all the on-screen controls and tools you need, its perfect for creating anything can imagine, The ExpressKey Remote puts 17 programmable buttons within easy reach. The on-screen keypad and the radial menus offer further one-touch shortcuts, Pan, zoom or rotate your work with multi-touch gestures - as simple as using your smartphone, The new Mobile Stand holds the Cintiq Pro at three different drawing angles, so always find a comfortable working position. When ready to move on, it folds flat for easy transport, Wacom Color Manager is designed to give you precision color calibration, better image quality and improved uniformity in one easy-to-use device that calibrates everything in your workflow. |
Others | Audio: Audio headset jack included. Power Supply Output: 20 VDC, 2.25 A (max), Power Supply Input: 100 to 240 VAC, 50/60Hz, Color Gamut: Adobe RGB at CIE1931, Coverage Ratio: 85%, Area Ratio: 94%, Industry Standard Pre-sets: 6500 degree K whitepoint default, Graphics Input: USB-C (DisplayPort Alt Mode), or Mini DisplayPort (for up to 3840 x 2160 resolution), or HDMI (for up to 2560 x 1440 resolution) using included Wacom Link Plus, Rocker Ring And Home Button: Yes , Dedicated pan, scroll, zoom, brush size: Yes , Display toggle: Yes, Precision Mode: Yes, Stand Adjustability: Integrated pop-out legs for 20 degree angle, Orientation: Right or left-handed use, Audio: Audio headset jack included, Power Supply Output: 20 VDC, 2.25 A (max), Power Supply Input: 100 to 240 VAC, 50/60Hz, Power Consumption: Max. Power Consumption: 33 W, 3 W or less when asleep 0.5W or less in sleep mode (USB non-connected) or OFF mode, Security: Kensington MiniSaver Mobile Lock Slot (lock purchased separately) |
Warranty | 1 year |
Tilt Range - 60 degrees, Tilt Recognition - +- 60 levels, Pen Switch - Tip switch, 2 side switches, eraser, Pen Grip - Latex-free silicone rubber, Desktop Pen Stand - Yes, Express/Shortcut Key - 17 customizable, application-specific on optional ExpressKey Remote, Touch Ring - Yes - on optional ExpressKey Remote, Power Consumption - 33W, System Requirement/Compatibility - Windows 7 or later, Mac: OS X 10.11 or later, Feature - Three fully customizable pen buttons let you tumble objects, pan, zoom, model, sculpt or modify creative tools in 3D and 2D applications, Work is made to be seen. With stunning Up to 4K resolution (3840x2160) and superb color accuracy, you wont be able to take eyes off it, The 15.6-inch screen gives the broad canvas need to add those little flourishes; while the anti-glare, etched-glass surface means can create in comfort with the familiar feel of pen on paper - until you happy with the results.
With plenty of space for work and all the on-screen controls and tools you need, its perfect for creating anything can imagine, The ExpressKey Remote puts 17 programmable buttons within easy reach. The on-screen keypad and the radial menus offer further one-touch shortcuts, Pan, zoom or rotate your work with multi-touch gestures - as simple as using your smartphone, The new Mobile Stand holds the Cintiq Pro at three different drawing angles, so always find a comfortable working position. When ready to move on, it folds flat for easy transport, Wacom Color Manager is designed to give you precision color calibration, better image quality and improved uniformity in one easy-to-use device that calibrates everything in your workflow, Others - Audio: Audio headset jack included. Power Supply Output: 20 VDC, 2.25 A (max), Power Supply Input: 100 to 240 VAC, 50/60Hz, Color Gamut: Adobe RGB at CIE1931, Coverage Ratio: 85%, Area Ratio: 94%.
Industry Standard Pre-sets: 6500 degree K whitepoint default, Graphics Input: USB-C (DisplayPort Alt Mode), or Mini DisplayPort (for up to 3840 x 2160 resolution), or HDMI (for up to 2560 x 1440 resolution) using included Wacom Link Plus, Rocker Ring And Home Button: Yes , Dedicated pan, scroll, zoom, brush size: Yes , Display toggle: Yes, Precision Mode: Yes, Stand Adjustability: Integrated pop-out legs for 20 degree angle, Orientation: Right or left-handed use, Audio: Audio headset jack included, Power Supply Output: 20 VDC, 2.25 A (max), Power Supply Input: 100 to 240 VAC, 50/60Hz, Power Consumption: Max. Power Consumption: 33 W, 3 W or less when asleep 0.5W or less in sleep mode (USB non-connected) or OFF mode, Security: Kensington MiniSaver Mobile Lock Slot (lock purchased separately), Part No - DTH-1620/K2-CX, Ports Included - 3 x USB C ports, Software Included - Yes, Cable Included - Yes, Warranty - 1 Year
