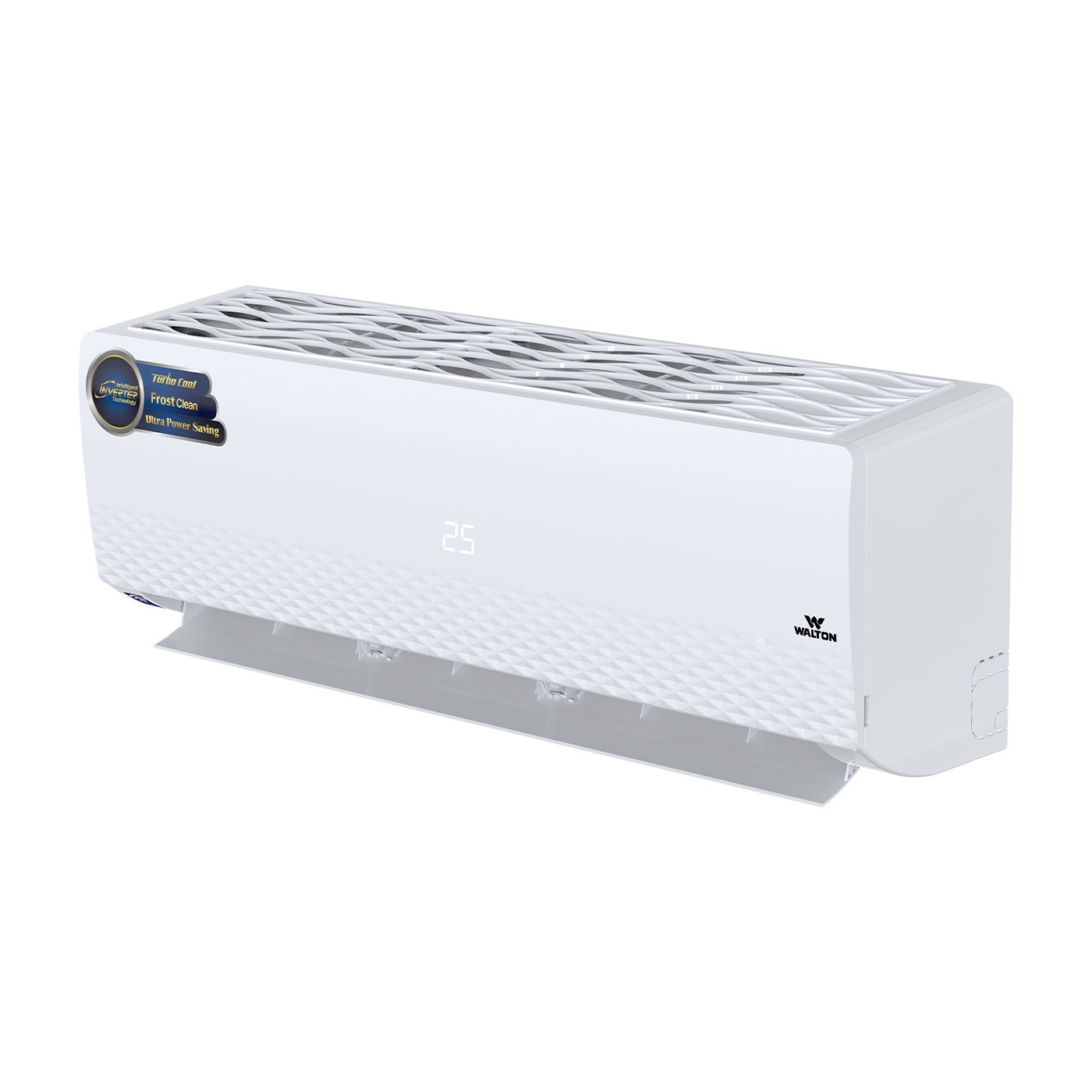

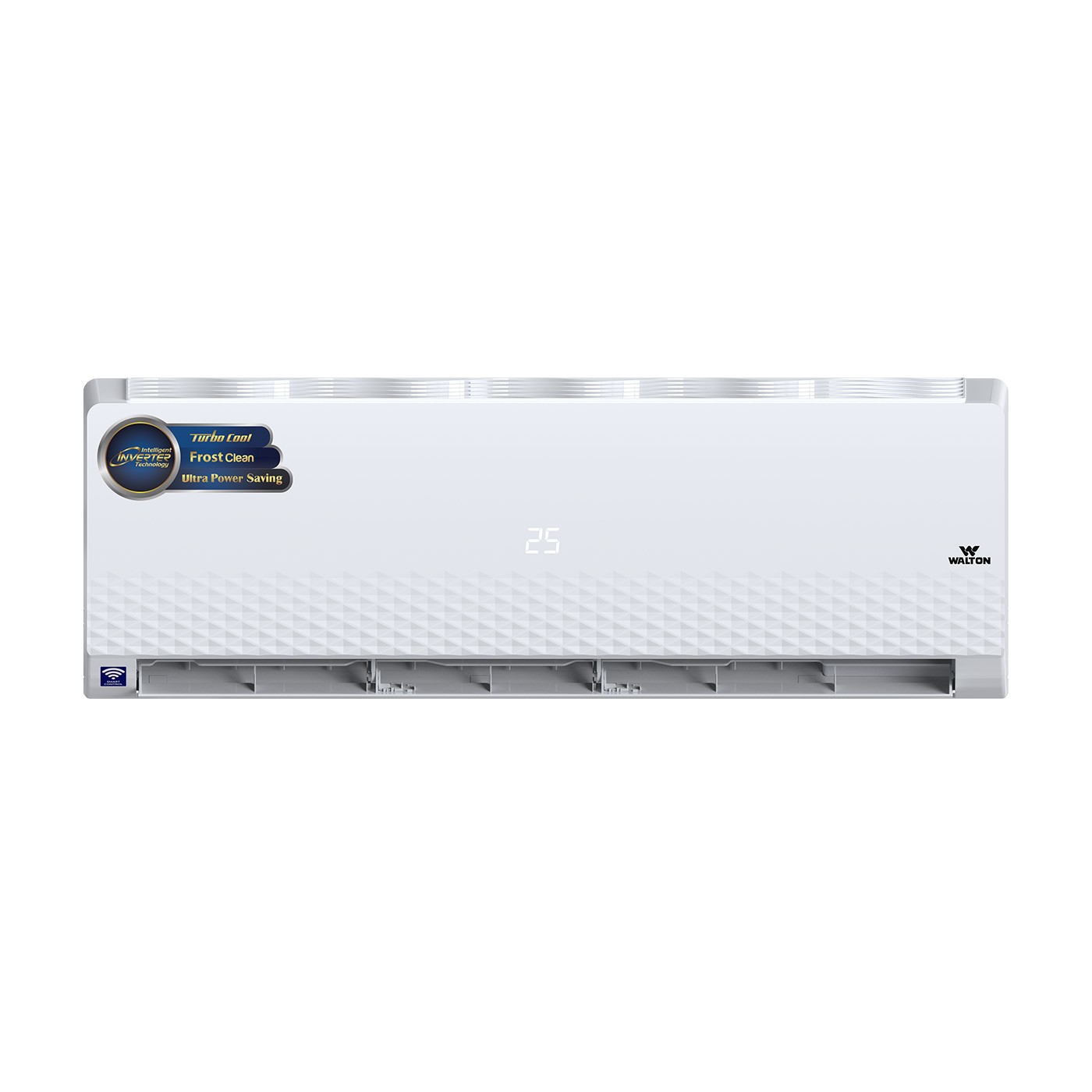

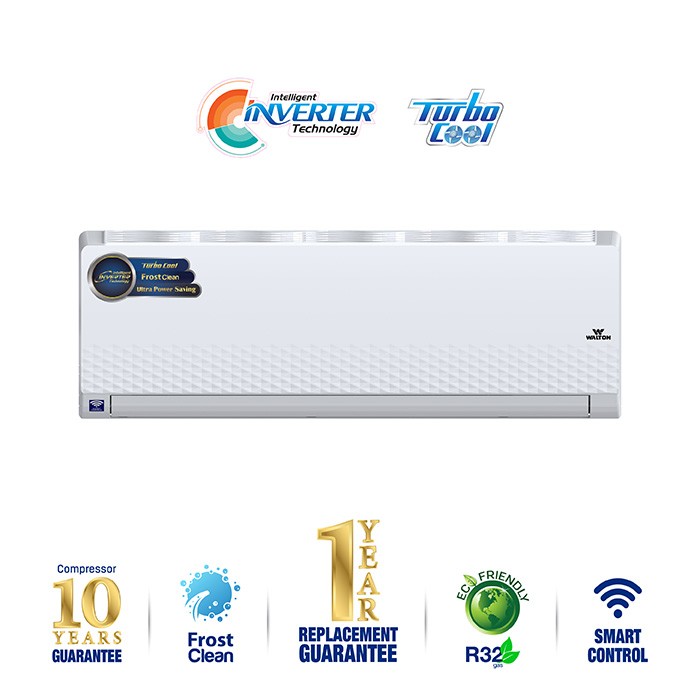

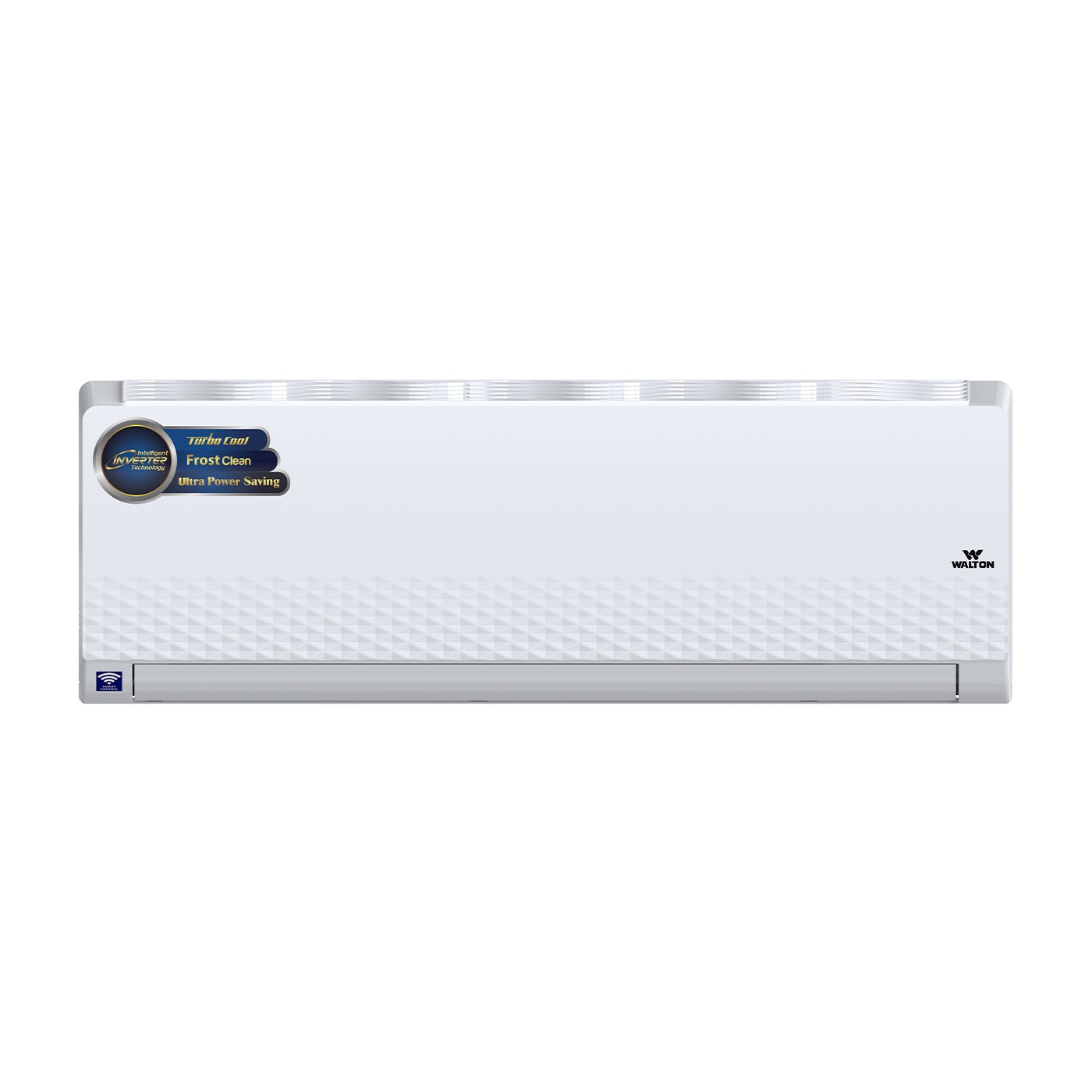

PRODUCT DETAILS
Brand | Walton |
Type | Intelligent Inverter |
Display Type | LCD |
Basic Features | |
Function | Cooling |
Cooling Capacity | 5275 |
BTU/HR | 18000 |
Rated Voltage | 230V ~ 50Hz |
Rated Current (A) | 6.82 |
Cooling Capacity (W) | 5275 |
EER | 3.35 |
Smart Control | Through App |
Cooling Features | |
Compressor Type | Rotary (Inverter) |
Refrigerant Type | R-32 |
Refrigerant Amount (kg) | 0.92 |
Operating Range (Ambient Temperature) | 20˚C to 43˚C |
Evaporator Fin Type | Louvered Fin |
Condenser Type | Copper Tube Condenser |
Condenser Fin Type | Slit Fin |
Maximum Pipe Length | 10m |
Operations | |
Turbo Mode (Maximum Cooling) | Yes |
Auto Operation | Yes |
Auto Restart | Yes |
Dry Mode | Yes |
Fan Mode | Yes |
Speed Setting | Yes (Auto, High, Medium, Low) |
Auto Restart | Yes |
Timer | Yes |
ECO Mode (Power Saving) | Yes |
Comfort Cooling | Yes |
Sleep | Yes |
Air Deflection | |
Auto UP-Down Swing | Yes |
Display Type | LCD |
Operation/Control | Via IR (Infrared Ray) |
Auto Left-Right Swing | Yes |
Temperature Unit Change | Yes (16°C to 31°C) |
Child Lock | Yes |
Dimensions | |
Indoor (mm) [LXWXH] | Unit: 933 x 321 x 230 |
Packing | 1010 x 380 x 290 |
Outdoor (mm) [LXWXH] | Unit: 844 x 310 x 546 |
Packing | 900 x 372 x 610 |
Weights | |
Net Weight (Indoor) (Kg) | 12.5 ± 0.5 |
Gross Weight (Indoor) (Kg) | 15 ± 0.5 |
Net Weight (Outdoor) (Kg) | 26.5 ± 1 |
Gross Weight (outdoor) (Kg) | 31 ± 1 |
Guarantee Information
Product Replacement Guarantee: 1 Year
Note:
If there are manufacturing faults in heat exchanger & compressor.
Warranty Information
For Residential Usage
- Compressor Warranty: 10 Years
- Spare Parts Support: 3 Years
- After Sales Service: 1 Year (Free)
For Commercial Usage
- Compressor Warranty: 5 Years
- Spare Parts Support: 2 Years
- After Sales Service: 1 Year (Free)
Terms & Conditions
1. This warranty does not cover the following cases -
i) The warranty will be invalid if the product is misused, neglected, rented on a commercial basis.
ii) The warranty also will be invalid if repaired, replaced modified by an unauthorized service personnel.
iii) If the product serial number/barcode is removed, altered or duplicated, the warranty will be invalid.
2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
