Brand | WALTON |
Type | Direct Cool |
Capacity | |
Gross Volume | 213 Ltr |
Gross Weight | 53 ± 2 Kg |
Net Volume | 176 Ltr |
Net Weight | 45.5 ± 2 Kg |
stabilizer capacity | 1000VA |
Performance | |
Climatic Type (SN, N, ST, T) | N~ST |
Rated Voltage/ Hz | 220 ~ 240V/ 50Hz |
Compressor Input Power (Watt) | V 06.01-124,V 07.01-109,V 07.02-109,V 07.03-109,V 08.01-127 |
Compressor Type | RSCR |
Refrigerant | V 06.01-R600a,V 07.01-R600a,V 07.02-R600a,V 07.03-R600a,V 08.01-R600a |
Condenser | 100% Copper |
Cooling Effect | |
Freezer Cabinet | Less than -18℃ |
Refrigerator Cabinet | 0℃ to +5℃ |
General Features | |
Temperature Control | Mechanical |
Defrosting | Manual |
Handle | Recessed |
Lock | Yes |
Capillary | Copper |

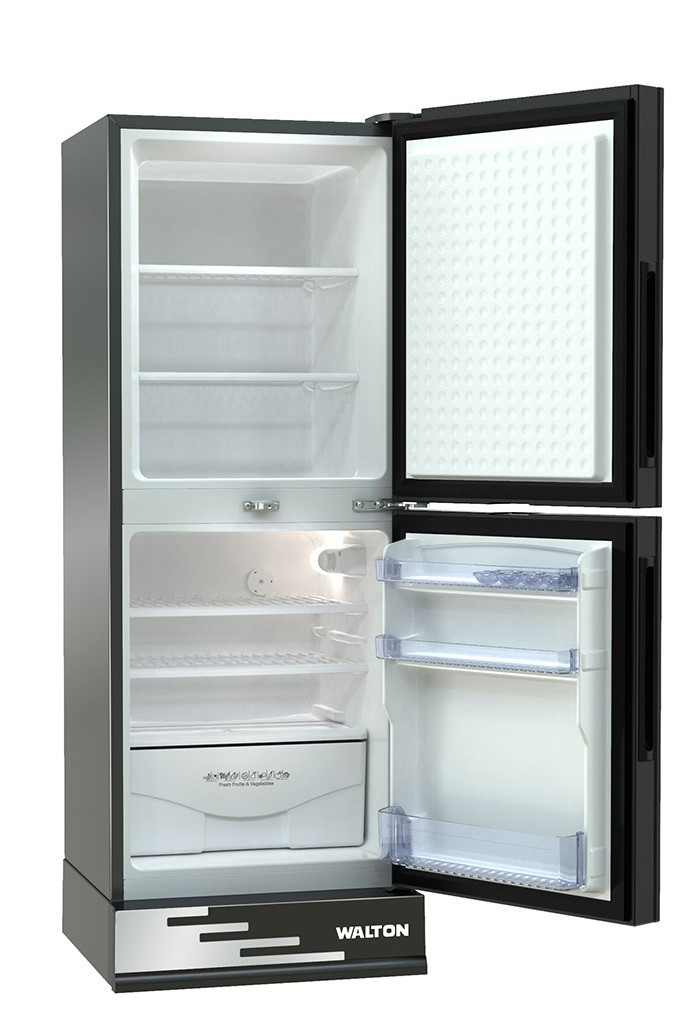

Refrigerator Compartment | |
Shelf (Material/ No.) | Wire/2 |
Door Pocket | GPPS/4 |
Interior Lamp | Yes |
Vegetable Box | Yes |
Vegetable Box Cover | Yes |
Egg Tray or Pocket | Yes |
Freezer Compartment | |
Shelf (Material/ No) | Wire/2 |
Drawer | HIPS/5 |
Dimensions (Net) | |
Width/mm | 550 mm |
Depth/mm | 645 mm |
Height/mm | 1510 mm |
Packing | |
Width/mm | 580 mm |
Depth/mm | 640 mm |
Height/mm | 1530 mm |
Loading Capacity- 40HQ/ 40Ft/ 20Ft | 102/ 102/ 50 |
Residential Use:
- Replacement Guarantee: 1 Year (Condition Apply)
- Main Parts (Compressor): 12 Years
- Spare Parts: 4 Years *
- After Sales Service:5 Years *
Commercial Use:
- Main Parts (Compressor): 4 Years
- Spare Parts: 2 Years *
- After Sales Service: 2 Years *
Note:
This warranty does not cover the following cases:
1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.
2. Any damage or failure caused by unauthorized modification or alteration.
3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.
*Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
