PRODUCT DETAILS
| Brand | Antec |
| Model | Antec NEO ECO Gold Zen NE600G |
| Series | NEO ECO Series |
| PSU Category | Non Modular |
| Type | ATX 12V 2.4 |
Cooling & Lighting
|
|
| Fan Size | 120mm |
| Zero RPM Fan Mode | Yes |
Performance
|
|
| Efficiency | 92% Efficiency |
| Efficiency Rating | 80 Plus Gold |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500ms |
Protection
|
|
| Protection | OCP, OVP, UVP, SCP, OPP, NLO |
| Over Voltage Protection (OVP) | Yes |
| Over Power Protection (OPP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Temperature Protection (OTP) | No |
| Short Circuit Protection (SCP) | Yes |
| Under Voltage Protection (UVP) | Yes |
| Connectors |
|
| ATX Main Connectors | 1 |
| EPS Connectors | 1 |
| PCIe Connectors | 4
|
| SATA Power Connectors | 6
|
| 4-Pin Peripheral Connectors | 2
|
Power
|
|
| Maximum Power | 600 Watt |
| Input Voltage | 100 - 240V |
| Input Frequency Range | 50Hz-60Hz |
| Input Current | 8A-4A |
| Operating Temperature | 0 - 40 degree C |
Physical Description
|
|
| Form Factor | ATX |
| Dimensions | 150 x 86 x 140mm |
| Weight (Kg) | 1.73Kg |
| Color | Black |
Warranty
|
|
Warranty
| 5 Year |
Additional Info
|
|
Specialty
| Efficient & Affordable, The new NeoECO Gold
ZEN series features high performance with an 80 PLUS Gold rating,
achieving up to 92% efficiency and gives savings unheard of from other
power supplies, Featuring a 120mm whisper-quiet high-quality fan and
CircuitShield Industrial Grade Protection, Japanese Heavy-Duty Caps, LLC
+ DC to DC Design, A server-class Half-Bridge LLC design with a
synchronous rectification based on a DC-DC topology, Silent Fan,
Engineered with high-quality capacitors and low-noise transformers, the
NeoECO Gold ZEN series provide clean, stable power with maximum CPU
& GPU support |

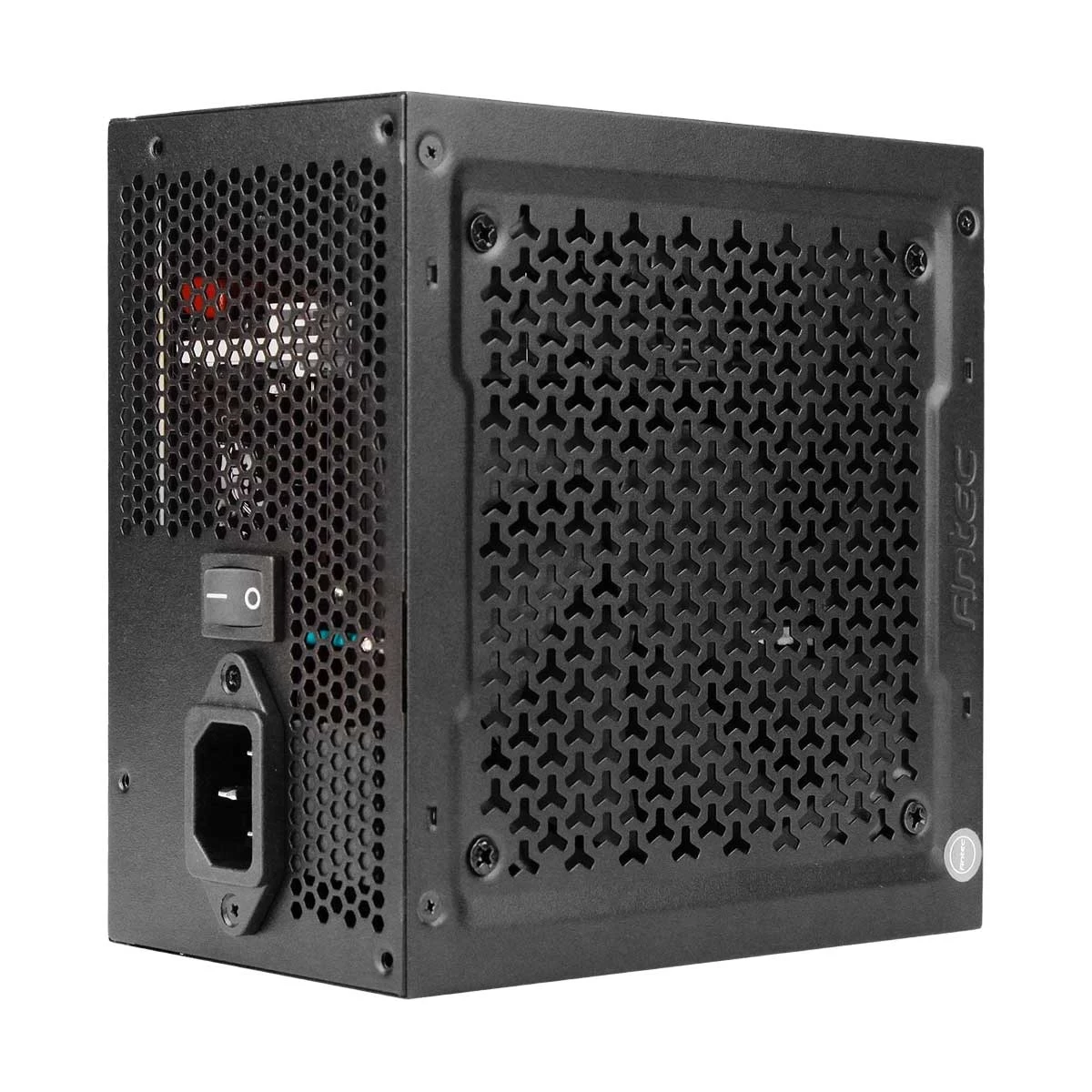

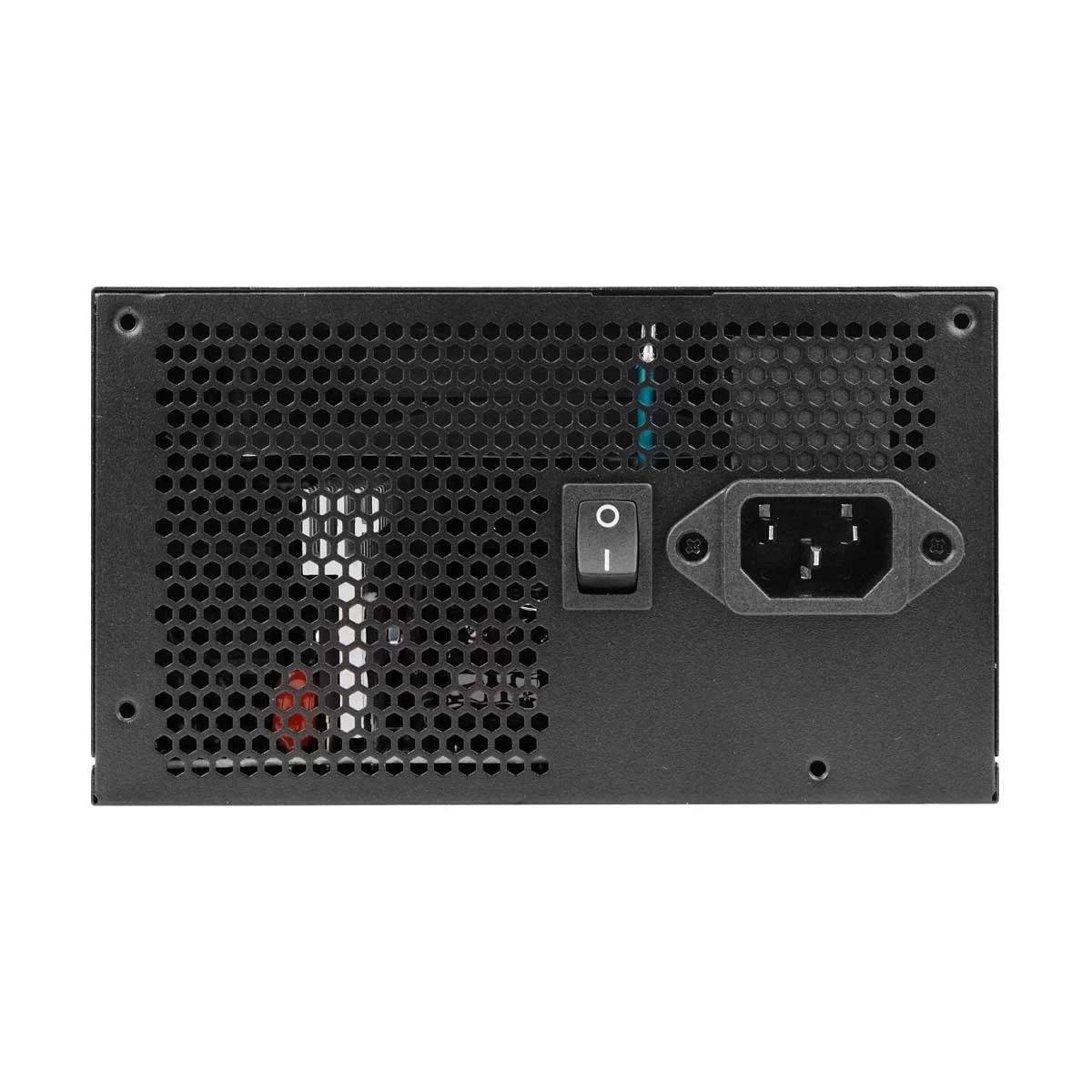

Antec NEO ECO Gold Zen NE600G 600W Non Modular Power Supply
Brand - Antec, Model - Antec NEO ECO Gold Zen NE600G, Series - NEO ECO
Series, PSU Category - Non Modular, Type - ATX 12V 2.4, Maximum Power -
600 Watt, Input Voltage - 100-240 VAC, Input Frequency Range -
50Hz-60Hz, Input Current - 8A-4A, Fan Size - 120mm, Zero RPM Fan Mode -
Yes, Efficiency - 92% efficiency, 80 Plus Rating - 80 Plus Gold,
Protection - OCP, OVP, UVP, SCP, OPP, NLO, Over Voltage Protection (OVP)
- Yes, Over Power Protection (OPP) - Yes, Over Current Protection (OCP)
- Yes, Over Temperature Protection (OTP) - No, Short Circuit Protection
(SCP) - Yes, Under Voltage Protection (UVP) - Yes, ATX Main Connectors -
1, EPS Connectors - 1, PCIe Connectors - 4, SATA Power Connectors - 6,
4-Pin Peripheral Connectors - 2, PFC (Power Factor Correction) - Active
PFC, Power Good Signal - 100-500ms, Operating Temperature - 0 - 40
degree C, Form Factor - ATX, Dimension (W/H/D) - 150 x 86 x 140mm,
Weight (Kg) - 1.73Kg, Color - Black, Specialty - Efficient &
Affordable, The new NeoECO Gold ZEN series features high performance
with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives
savings unheard of from other power supplies, Featuring a 120mm
whisper-quiet high-quality fan and CircuitShield Industrial Grade
Protection, Japanese Heavy-Duty Caps, LLC + DC to DC Design, A
server-class Half-Bridge LLC design with a synchronous rectification
based on a DC-DC topology, Silent Fan, Engineered with high-quality
capacitors and low-noise transformers, the NeoECO Gold ZEN series
provide clean, stable power with maximum CPU & GPU support, Warranty
- 5 Year, Country of Origin - USA, Made in/ Assemble - China.
