PRODUCT DETAILS
Brand | Antec |
Model | Antec Signature Platinum 1300W |
PSU Category | Full Modular |
Type | ATX |
Cooling & Lighting
|
|
Fan Size | 135mm |
Zero RPM Fan Mode | Yes |
Performance
|
|
Efficiency | 89% efficiency |
Efficiency Rating | 80 Plus Platinum |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500ms |
Protection
|
|
Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Over Voltage Protection (OVP) | Yes |
Over Power Protection (OPP) | Yes |
Over Current Protection (OCP) | Yes |
Over Temperature Protection (OTP) | Yes |
Short Circuit Protection (SCP) | Yes |
Under Voltage Protection (UVP) | Yes |
Connectors |
|
ATX Main Connectors | 1 |
EPS Connectors | 2 |
PCIe Connectors | 12
|
SATA Power Connectors | 14
|
4-Pin Peripheral Connectors | 5
|
Floppy Connectors | 1
|
Power
|
|
Maximum Power | 1300 Watt |
Input Voltage | 100 - 240 Vac |
Input Frequency Range | 47Hz - 63Hz |
Input Current | 15A - 7.5A |
Operating Temperature | 0 degree C - 40 degree C |
Physical Description
|
|
Form Factor | ATX |
Dimensions | 150 x 170 x 86mm |
Weight (Kg) | 2.12 Kg |
Color | Black |
Warranty
|
|
Warranty
| 10 year |
Additional Info
|
|
Regulatory / Safety Approval | cTUVus / TUV / CB / CE / FCC / BSMI / 3C / KC / RCM |
Specialty
| Zero RPM Mode, FDB 135mm Silent Fan |

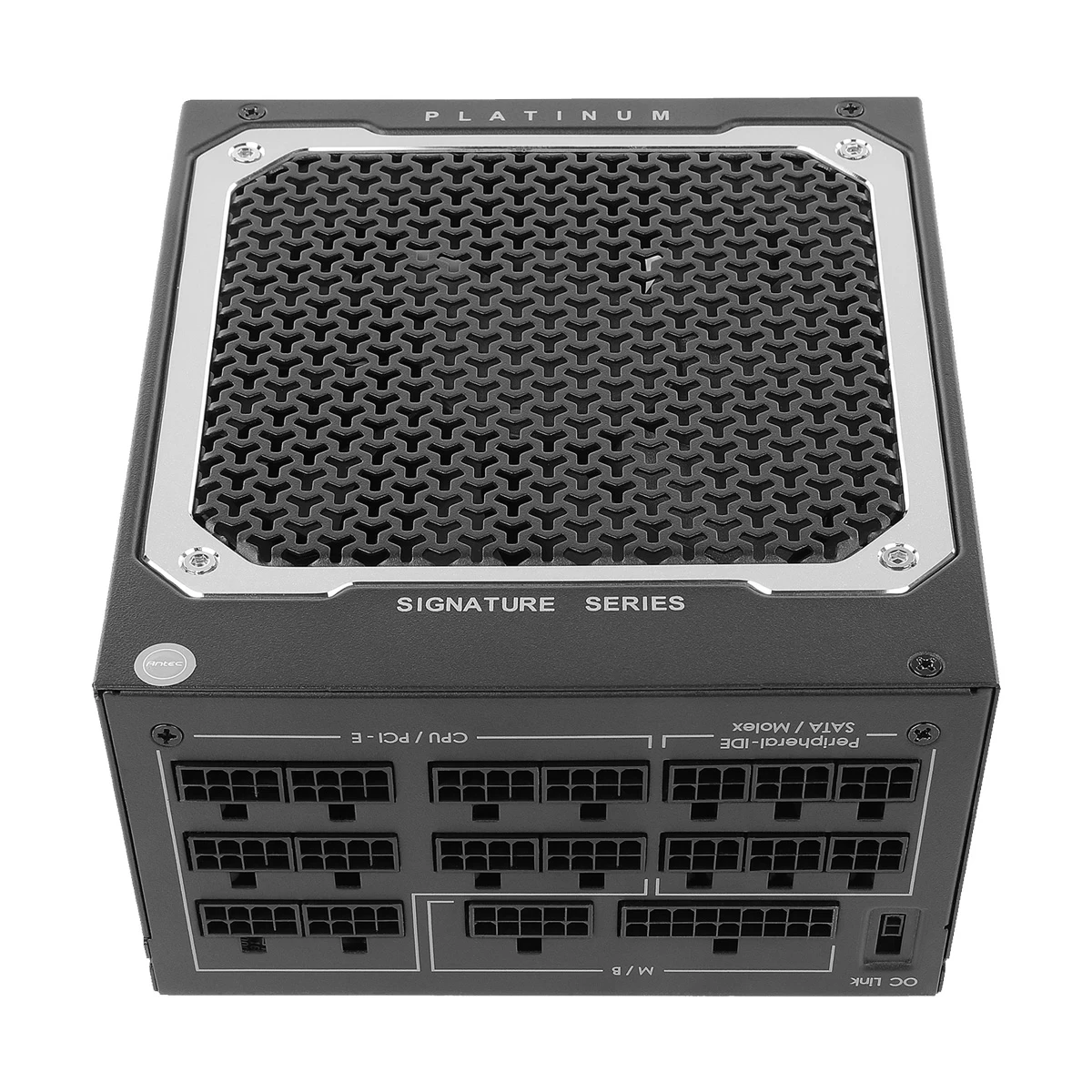

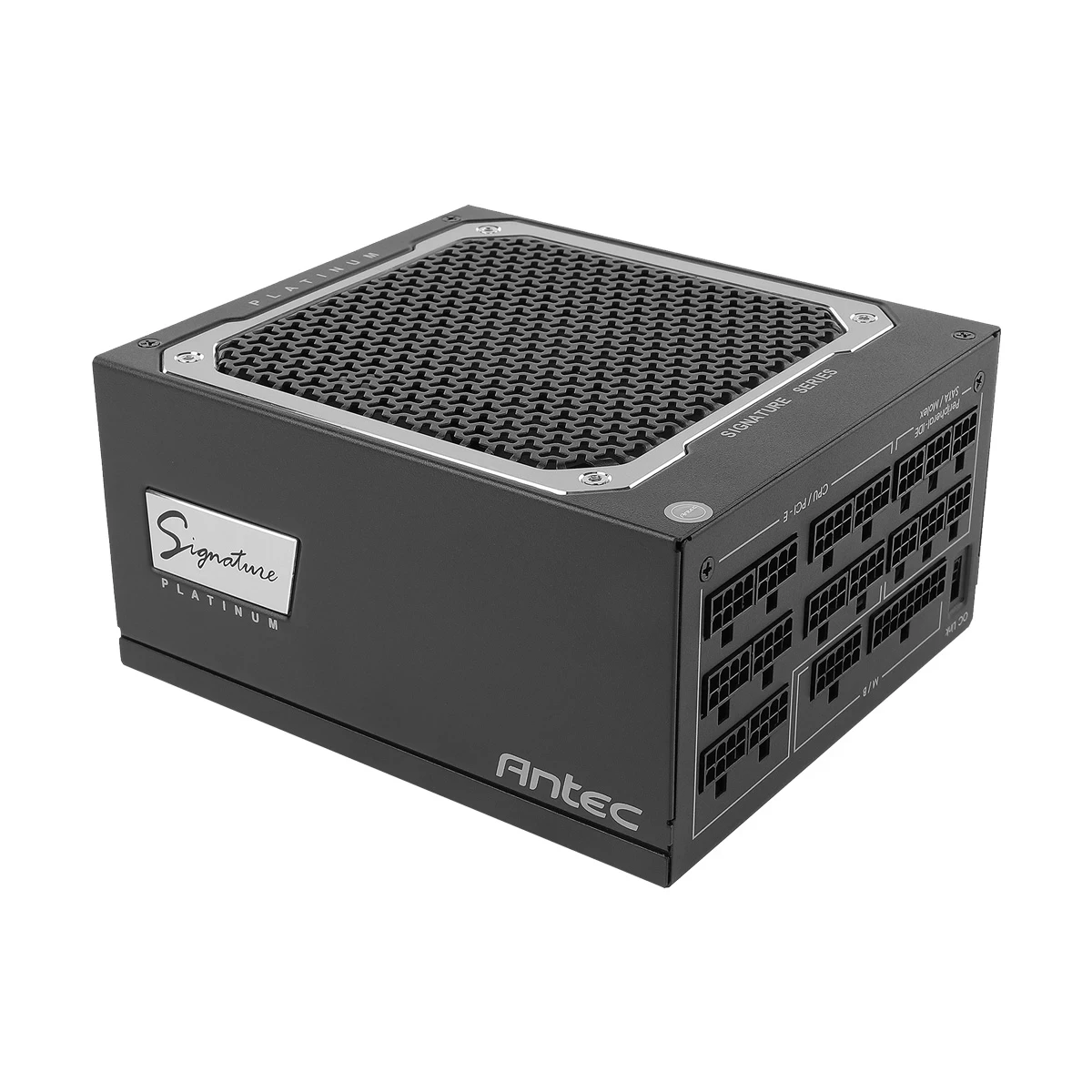

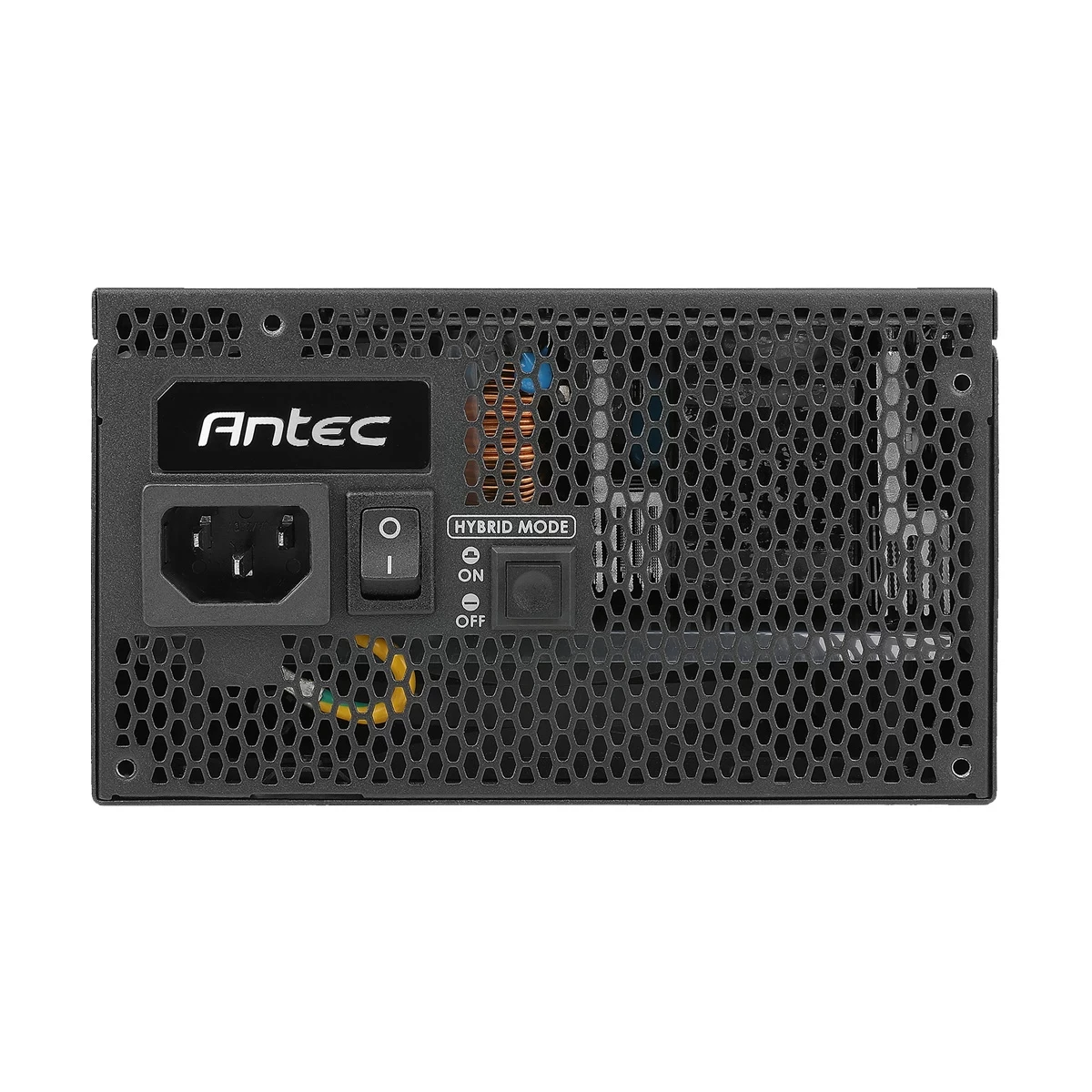

Antec Signature Platinum 1300W ATX Fully Modular Black Power Supply
Brand - Antec, Model - Antec Signature Platinum 1300W, PSU Category -
Fully Modular, Type - ATX, Maximum Power - 1300 Watt, Input Voltage -
100 - 240 Vac, Input Frequency Range - 47Hz - 63Hz, Input Current - 15A -
7.5A, Fan Size - 135mm, Zero RPM Fan Mode - Yes, Efficiency - 89%
efficiency, 80 Plus Rating - 80 Plus Platinum, Protection - OCP / OVP /
UVP / SCP / OPP / OTP / SIP / NLO, Over Voltage Protection (OVP) - Yes,
Over Power Protection (OPP) - Yes, Over Current Protection (OCP) - Yes,
Over Temperature Protection (OTP) - Yes, Short Circuit Protection (SCP) -
Yes, Under Voltage Protection (UVP) - Yes, ATX Main Connectors - 1, EPS
Connectors - 2, PCIe Connectors - 12, SATA Power Connectors - 14, 4-Pin
Peripheral Connectors - 5, Floppy Connectors - 1, PFC (Power Factor
Correction) - Active PFC, Power Good Signal - 100 - 500ms, Operating
Temperature - 0 degree C - 40 degree C, Form Factor - ATX, Dimension
(W/H/D) - 150 x 170 x 86mm, Weight (Kg) - 2.12 Kg, Color - Black,
Regulatory / Safety Approval - cTUVus / TUV / CB / CE / FCC / BSMI / 3C /
KC / RCM, Specialty - Zero RPM Mode, FDB 135mm Silent Fan, Warranty -
10 Year, Country of Origin - USA, Made in/ Assemble - China.
