PRODUCT DETAILS
| Brand | Asus |
Model
| Asus PRIME H610M-A D4 (Wi-Fi 5) |
CPU
|
|
| Chipset Brand | Intel |
| Chipset | Intel H610 |
| Sockets Supported | LGA1700 |
| Supported CPU | 12th Gen Intel Core Pentium Gold and Celeron Processors |
| Generation | 12th |
Memory Support
|
|
| Memory Type | DDR4 |
| Memory MHz | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 2
|
| Memory Max. | 64GB |
Storage
|
|
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2
|
Graphics
|
|
| PCI Express Slot | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
Audio & Video
|
|
| Audio Chipset. | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channel | 7.1 |
Network & Connectivity
|
|
| LAN Chipset | 1 x Intel 1Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 5 (802.11 a/b/g/n/ac) |
| Bluetooth | Bluetooth 5.0 |

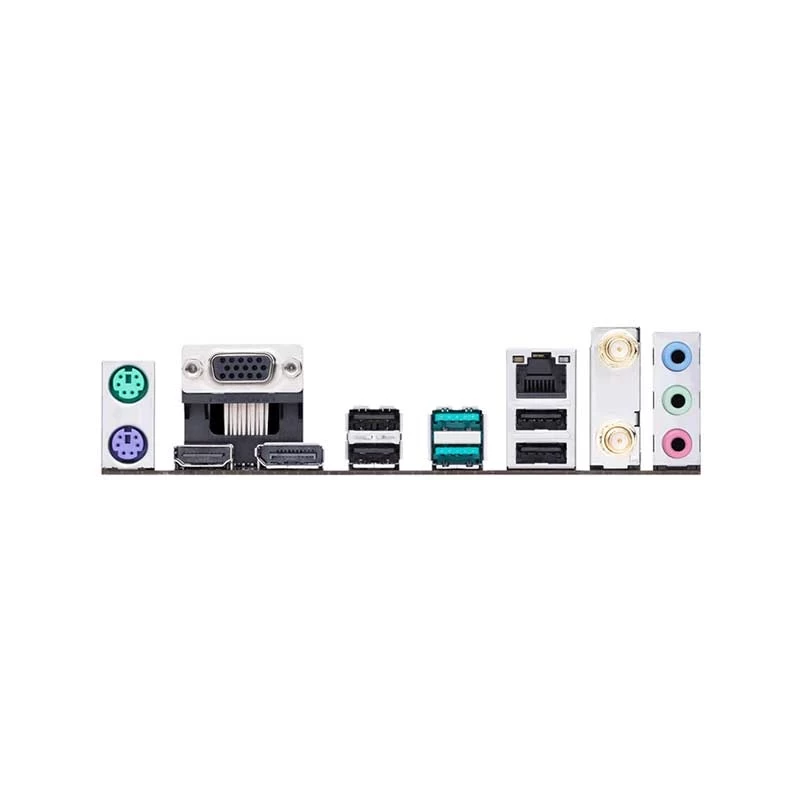

Ports
|
|
| USB Port | 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A |
| VGA Port | 1
|
| HDMI Port | 1
|
| DisplayPort (DP) | 1
|
| SATA Port | 4
|
Technical Information
|
|
| FireWire | No |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura sync |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | Micro-ATX |
Bios Information
|
|
| BIOS Type | 128 Mbit Flash |
| BIOS Model | UEFI AMI BIOS |
Compatibility
|
|
| Supported Operating System | Windows 10 / 11 |
Warranty
|
|
Warranty
| 3 Years Replacement Warranty |

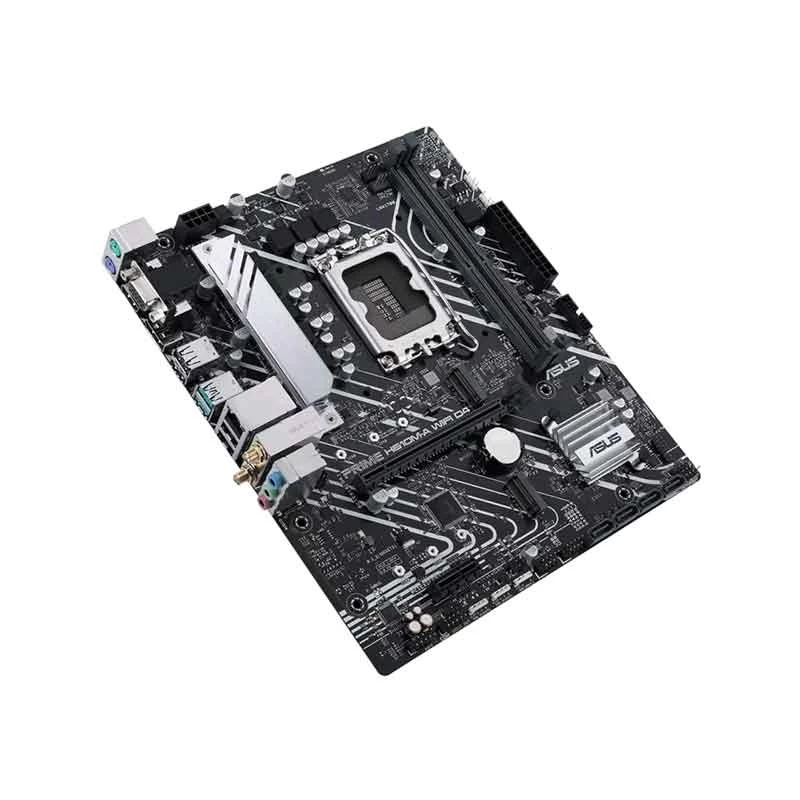

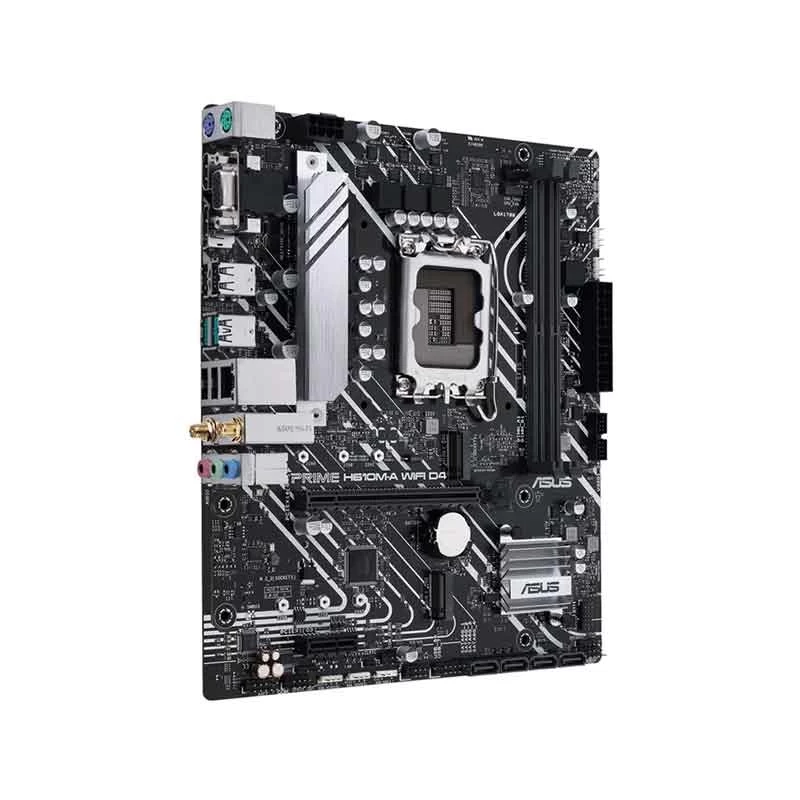

Asus PRIME H610M-A D4 (Wi-Fi 5) DDR4 12th Gen Intel LGA1700 Socket Motherboard
Brand - Asus, Model - Asus PRIME H610M-A D4 (Wi-Fi 5), Chipset Brand -
Intel, Chipset - Intel H610, CPU Sockets - LGA1700, Supported CPU - 12th
Gen Intel Core Pentium Gold and Celeron Processors, Generation - 12th,
Memory Type - DDR4, Memory MHz - 3200/ 3000/ 2933/ 2800/ 2666/ 2400/
2133 Non-ECC Un-buffered Memory, Memory Channel - Dual, Memory Slot - 2,
Memory Max. - 64GB, PCI Express Slot - 1 x PCIe 4.0 x16 slot, 1 x PCIe
3.0 x1 slot, Storage Interface - 6.0 Gb/s, M.2 Slot - 2 x M.2 (1 x M.2
type 2242/2260/2280 supports PCIe 3.0 x4 mode), (1 x M.2 type
2242/2260/2280 supports PCIe 3.0 x2 mode), LAN Chipset - 1 x Intel 1Gb
Ethernet, LAN Speed (Mbps) - 10/100/1000 Mb/s, Audio Chipset - Realtek
7.1 Surround Sound High Definition Audio CODEC, Audio Channel - 7.1
Channel, Wi-Fi - Yes, Wi-Fi Technology - Wi-Fi 5 (802.11 a/b/g/n/ac),
Bluetooth - Bluetooth 5.0, USB Port - 2 x USB 3.2 Gen 2 Type-A, 4 x USB
2.0 Type-A, VGA Port - 1, HDMI Port - 1, DisplayPort (DP) - 1, SATA Port
- 4, BIOS Type - 128 Mbit Flash, BIOS Model - UEFI AMI BIOS, FireWire -
No, CrossFire Support - No, Sli Support - No, RGB Support - Yes, RGB
Sync - Aura Sync, RGB Connector - 2 x AURA RGB headers, Form Factor -
Micro-ATX, Supported Operating System - Windows 10 / 11, Warranty - 3
Year Replacement, Country of Origin - Taiwan, Made in/ Assemble - China.
